Luminaire Specifications
Power | 30W / 50W / 100W / 150W |
Fitting Material | Non-Corrosive Die-cast Aluminium |
Fitting Colour | Black |
Optical Cover | 95% Transparency Tempered Glass |
Ingress Protection | IP65 |
Impact Protection | IK08 |
Voltage | 220 ~ 240 Vac 50 / 60Hz |
Electrical Safety Class | Class I |
Operating Temperature | -30 ~ +45°C |

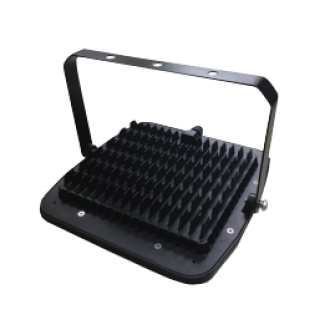

Installation | Mounting Bracket |
Surge Protections | Yes |
Pre-wire | 300 mm |
Application
- Parks
- Gardens
- Facade Lightings
- Parking Areas
- Commercial & Residential Areas
- Warehouses & Workshops
LED Module Specifications
Colour Temperature | 5700K Daylight |
Colour Rendering Index (CRI) | >70 |
PCB Material | Metal Core |
Order Code
Measurement
Dimension & Photometric
