Hager NB210 10A 2P 10KA TB MCB
- Type of pole: 2 pole
- Curve: Type B
- Rated Insulation Voltage: 500 V
- Rated Impulse withstand voltage: 6000 V
- Rating Current 30°C: 10A
- Total power loss under IN: 4.13 W
- Can be accessorized: YES
- Protection Index IP: IP20
- Number of modules: 2
- Rated operational voltage Ue: 400V
- Rated Current: 10A
- Type of Supply Voltage: AC
- Rated service breaking capacity Ics AC: 7.5 kA
- according IEC 60898-1
- Rated service breaking capacity Ics under: 7.5 kA
- 400V AC according IEC 60947-2
- Electrical life (number of cycles): 4000
- Mechanical endurange (number of cycles): 20000

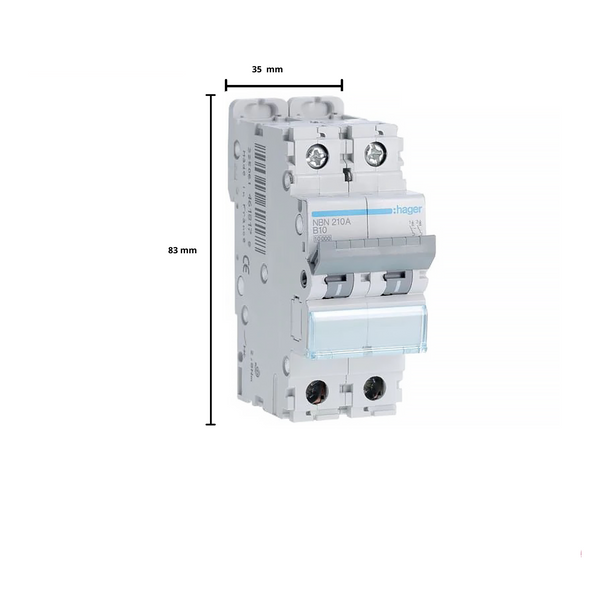

- Dimensions: 83mm height, 35mm width, 70mm depth
