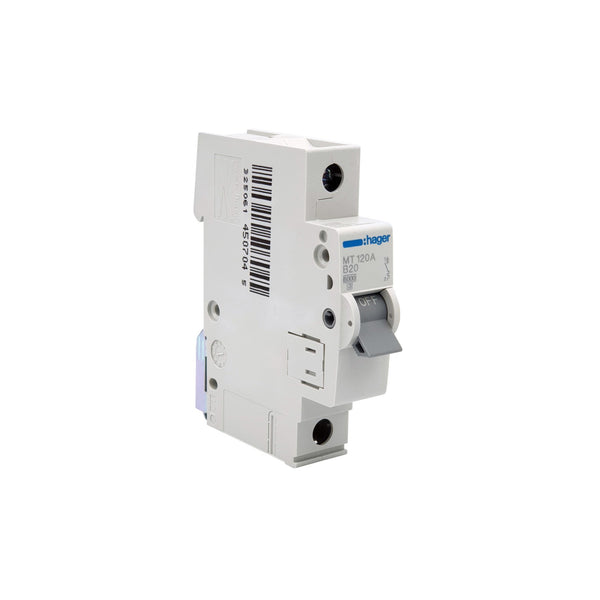

![Hager MT120A 20A 1P Single Pole 6kA Type B Miniature Circuit Breaker (MCB)](http://www.electricmart.com.sg/cdn/shop/products/5682713659020256811_{width}x.jpg?v=1573117617)
![](http://cdn.shopify.com/s/files/1/0075/0131/6186/files/imageedit_23_5042226362_compact.png?v=1566527953)
Technical Characteristics
Number of poles: | 1 P |
Type of pole: | 1 P |
Curve: | B |
Frequency: | 50/60 Hz |
Rated short circuit breaking capacity Icn AC according IEC60898-1: | 6 kA |
Rated operational voltage Ue: | 230/400 V |
Rated insulation voltage: | 500 V |
Rated impulse withstand voltage: | 4000 V |
Rated short circuit breaking capacity Icn under 230V AC according IEC60898-1: | 6 kA |
Rated service breaking capacity Ics AC according IEC 60898-1: | 6 kA |
Breaking capacity on 1 pole with 400 V NF 60947-2: | 3 kA |
Rated ultimate short-circuit breaking capacity Icu under 230V AC IEC 60947-2: | 6 kA |
Magnetic regulating currrent at 40° C: | 3/5 In |
min/maxi threshold value of the DC magnetic operation: | 4/7 In |
min/maxi threshold value of the AC thermal operation: | 1,13/1,45 In |
min/maxi threshold value of the DC thermal operation: | 1,13/1,45 In |
Rating current 20°C: | 21,6 A |
Rating current 30°C: | 20 A |
Rating current 35°C: | 19,2 A |
Rating current 40°C: | 18,4 A |
Rating current 45°C: | 17,6 A |
Rating current 50°C: | 16,8 A |
Rating current 55°C: | 16 A |
Rating current 60°C: | 15,2 A |
Rating current 70°C: | 13,6 A |
Correction factor of magnetic tripping with 100 Hz: | 1,1 |
Correction factor of magnetic tripping with 200 Hz: | 1,2 |
Correction factor of magnetic tripping with 400 Hz: | 1,5 |
Correction factor of magnetic tripping with 60 Hz: | 1 |
Correction factor of rating current for 2 devices placed side-by-side: | 1 |
Correction factor of rating current for 3 devices placed side-by-side: | 0,95 |
Correction factor of rating current for 4 and 5 devices placed side-by-side: | 0,9 |
Correction factor of rating current for 6 devices placed side-by-side: | 0,85 |
Power loss per pole at In: | 2,79 W |
Total power loss under IN: | 2,79 W |
Electric endurance in number of cycles: | 4000 |
Number of mechanical operations: | 20000 |
Depth of installed product: | 70 mm |
Height of installed product: | 83 mm |
Width of installed product: | 17,5 mm |
Tightening torque: | 2,8Nm |
type of connection: | with screw |
Top and bottom screw terminals connection capacity with flexible cable: | 1/16 mm² |
Top and bottom screw terminals connection capacity with rigid cable: | 1/25 mm² |
Standard text: | EN 60898-1 |
European directive WEEE: | concerned |
Protection index IP: | IP20 |
Degree of pollution according to IEC 60664 / IEC 60947-2: | 2 |
Class of energy limitation I²t: | 3 |
Altitude: | 2000 m |
Storage temperature: | -25 to 80 °C |
Air humidity protection: | for all climates |
