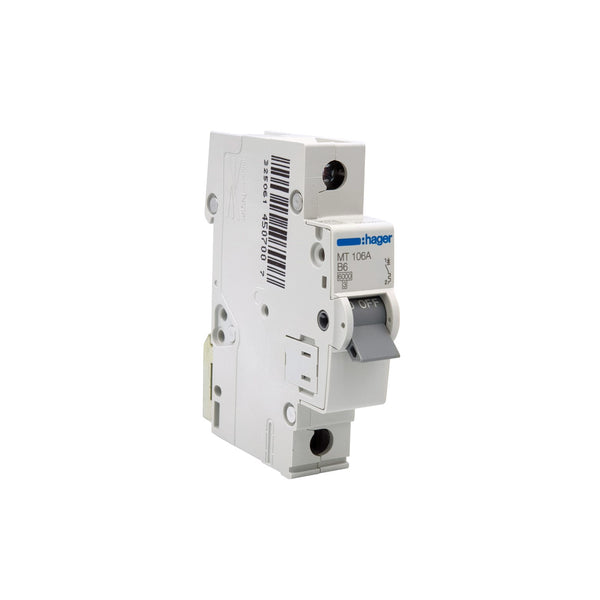

Technical Characteristics
| Number of poles: | 1 P |
| Type of pole: | 1 P |
| Curve: | B |
| Frequency: | 50/60 Hz |
| Rated short circuit breaking capacity Icn AC according IEC60898-1: | 6 kA |
| Rated operational voltage Ue: | 230/400 V |
| Rated insulation voltage: | 500 V |
| Rated impulse withstand voltage: | 4000 V |
| Rated short circuit breaking capacity Icn under 230V AC according IEC60898-1: | 6 kA |
| Rated service breaking capacity Ics AC according IEC 60898-1: | 6 kA |
| Breaking capacity on 1 pole with 400 V NF 60947-2: | 3 kA |
| Rated ultimate short-circuit breaking capacity Icu under 415V AC IEC 60947-2: | 10 kA |
| Magnetic regulating currrent at 40° C: | 3/5 In |
| min/maxi threshold value of the DC magnetic operation: | 4/7 In |
| min/maxi threshold value of the AC thermal operation: | 1,13/1,45 In |
| min/maxi threshold value of the DC thermal operation: | 1,13/1,45 In |
| Rating current -15°C: | 7 A |
| Rating current -20°C: | 7,1 A |
| Rating current 0°C: | 6,7 A |
| Rating current 10°C: | 6,5 A |
| Rating current -10°C: | 6,9 A |
| Rating current 15°C: | 6,3 A |
| Rating current 20°C: | 6,2 A |
| Rating current 25°C: | 6,1 A |
| Rating current -25°C: | 7,2 A |
| Rating current 30°C: | 6 A |
| Rating current 35°C: | 5,9 A |
| Rating current 40°C: | 5,8 A |
| Rating current 45°C: | 5,6 A |
| Rating current 5°C: | 6,6 A |
| Rating current -5°C: | 6,8 A |
| Rating current 50°C: | 5,5 A |
| Rating current 55°C: | 5,4 A |
| Rating current 60°C: | 5,2 A |
| Rating current 65°C: | 5,1 A |
| Rating current 70°C: | 5 A |
| Correction factor of magnetic tripping with 100 Hz: | 1,1 |
| Correction factor of magnetic tripping with 200 Hz: | 1,2 |
| Correction factor of magnetic tripping with 400 Hz: | 1,5 |
| Correction factor of magnetic tripping with 60 Hz: | 1 |
| Correction factor of rating current for 2 devices placed side-by-side: | 1 |
| Correction factor of rating current for 3 devices placed side-by-side: | 0,95 |
| Correction factor of rating current for 4 and 5 devices placed side-by-side: | 0,9 |
| Correction factor of rating current for 6 devices placed side-by-side: | 0,85 |
| Power loss per pole at In: | 1,3 W |
| Total power loss under IN: | 1,3 W |
| Electric endurance in number of cycles: | 4000 |
| Number of mechanical operations: | 20000 |
| Depth of installed product: | 70 mm |
| Height of installed product: | 83 mm |
| Width of installed product: | 17,5 mm |
| Tightening torque: | 2,8Nm |
| type of connection: | with screw |
| Top and bottom screw terminals connection capacity with flexible cable: | 1/16 mm² |
| Top and bottom screw terminals connection capacity with rigid cable: | 1/25 mm² |
| Standard text: | EN 60898-1 |
| European directive RoHs: | voluntary compliance |
| European directive WEEE: | concerned |
| Protection index IP: | IP20 |
| Degree of pollution according to IEC 60664 / IEC 60947-2: | 2 |
| Class of energy limitation I²t: | 3 |
| Altitude: | 2000 m |
| Storage temperature: | -25 to 80 °C |
| Air humidity protection: | for all climates |
