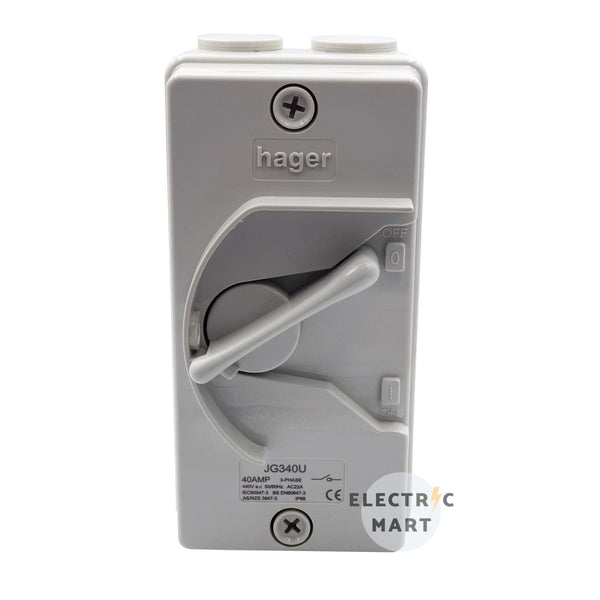

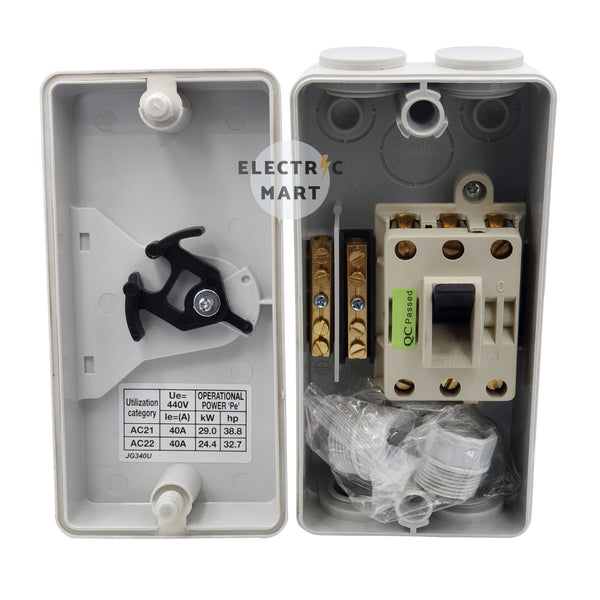

The range of IP66 isolators are designed to be used in outdoor applications with IP 66 degree of protection. They are rated at AC23A and offer 2 poles, 3 poles and 3 poles with switched neutral.
Ingress protection : IP66Tested and complied to BSEN 60947-3Compact designTwo quick release screws on top cover supports easy installation & openingUV grade polycarbonate
- Compact and easy to install with a 2 screw quick release top cover
- Tested and complies with AS/NZS IEC 60947-3
- Rated voltage: 250V~AC 440V~AC
- Utilization category AC-23A for switching motor loads or other highly inductive loads such as air condioners, compressors and motor loads.
- IP66 Protection
- External material is UV stabilised polycarbonate
- 25mm threaded conduit entry
- 7mm locking hole for switch lever
