Instructions

Non-Ratchet Type:Remove the closed lock to open the handles.

Ratchet Type:Squeeze the handles until it stops to open the handles.

1).Stripping modular cable:

1a.Insert 4P/6P cable into the two-bladed side of the tool's stripper until it touches the stop guide.

1b.Insert 8P/10P into the two-bladed side of the tool's stripper and let it extend a litter past the lower cut blade.

2).Squeeze handles until it stops ,cable must be kept perpendicular and then pull from the tool.

3).Remove the outer jacket ,insert the stripped cable into the plug and be sure the left wire at one end matches and matches the right wire at the other end.

4).Place modular plug with cable into the tool's holder. Be sure the stripped wire is between the tab and gold contacts. Squeeze handles until it stops.

5).Remove the crimped plug from the tool.

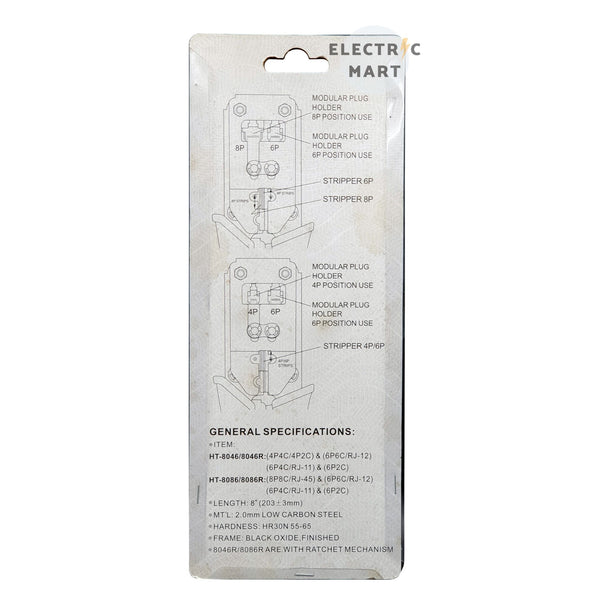

Item:

HT-8046/8046R: (4P4C/4P2C)&(6P6C/RJ-12)

(6P4C/RJ-11)&(6P2C)
Length: 8''(203±3mm)
MT'L :2.0 low carbon steel
Hardness: HR30N 55-65
Frame:black oxide, finished

8046R/8086R are with ratchet mechanism

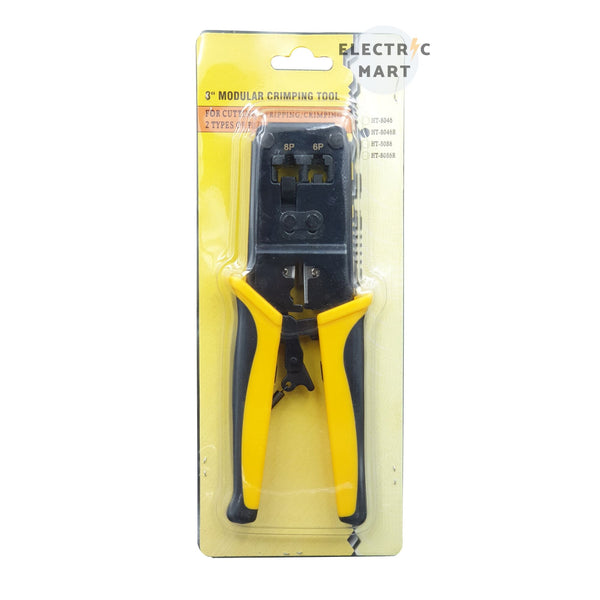

• 8'' Dual-Modular Crimping Tool

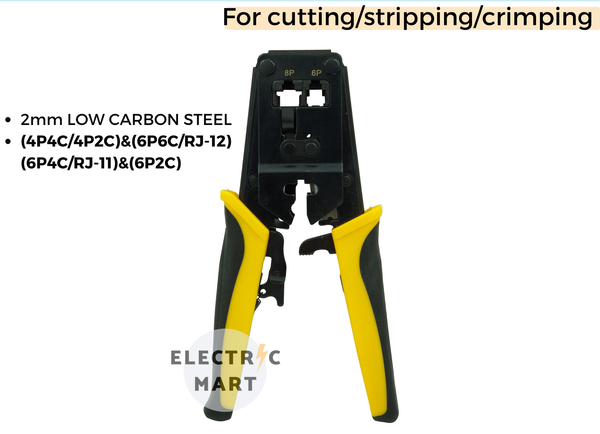

• For cutting ,stripping , and crimping 2 type of plugs in 1 tool
