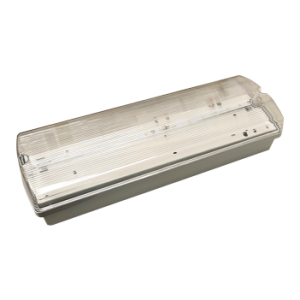

Denko Compact Self-contained emergency light, LED lamps to provide high efficiency, durability, and low energy consumption. Weatherproof version ideal for outdoor areas such as dusty, humid and corrosive environments including car parks, loading bays, workshops, laboratories, and corridor areas. Easy installation, no additional brackets required.
Features Self-contained emergency light Easy installation, no additional brackets required.LED lamps provide high efficiency, durability and low energy consumption.Weatherproof version ideal for outdoor areas such as dusty, humid and corrosive environments including car parks, loading bays, workshops, laboratories and corridor areas.
Technical Specifications
- Mode of Operation: Non-maintained
- Lamp: 1W High flux white LED
- Operating Temperature: ta 0°C ~ 50°C
- Mains Supply: 230V AC 50/60 Hz
- Power Consumption: < 1W
- Battery: High temperature NICD battery
- Charger: Fully automatic
- Charging Monitor: Ø 5mm green LED
- Recharge Period: 24 hrs
- Testing Facility: Test-switch for independent testing
- Emergency Duration: 3 hrs
- Safety Feature: Low-voltage cut-off to prevent over-discharge of battery
- Emergency Duration: 3 hrs
- Weight (Nett/Gross): 0.8 kg / 0.85 kg
Compliance:
- SS 563-2/A1:2013;
- SS IEC 60598-2-22:2016;
- SS IEC 60598-1:2016
Installation: Ceiling, wall or pendant mounting
Cable Entry: Standard 20mm Ø knockout hole
IP Rating:
- CEL 11NM: IP20
- CEL 11NM WP: IP65 rated TÜV SÜD PSB certified
